Smart Skid

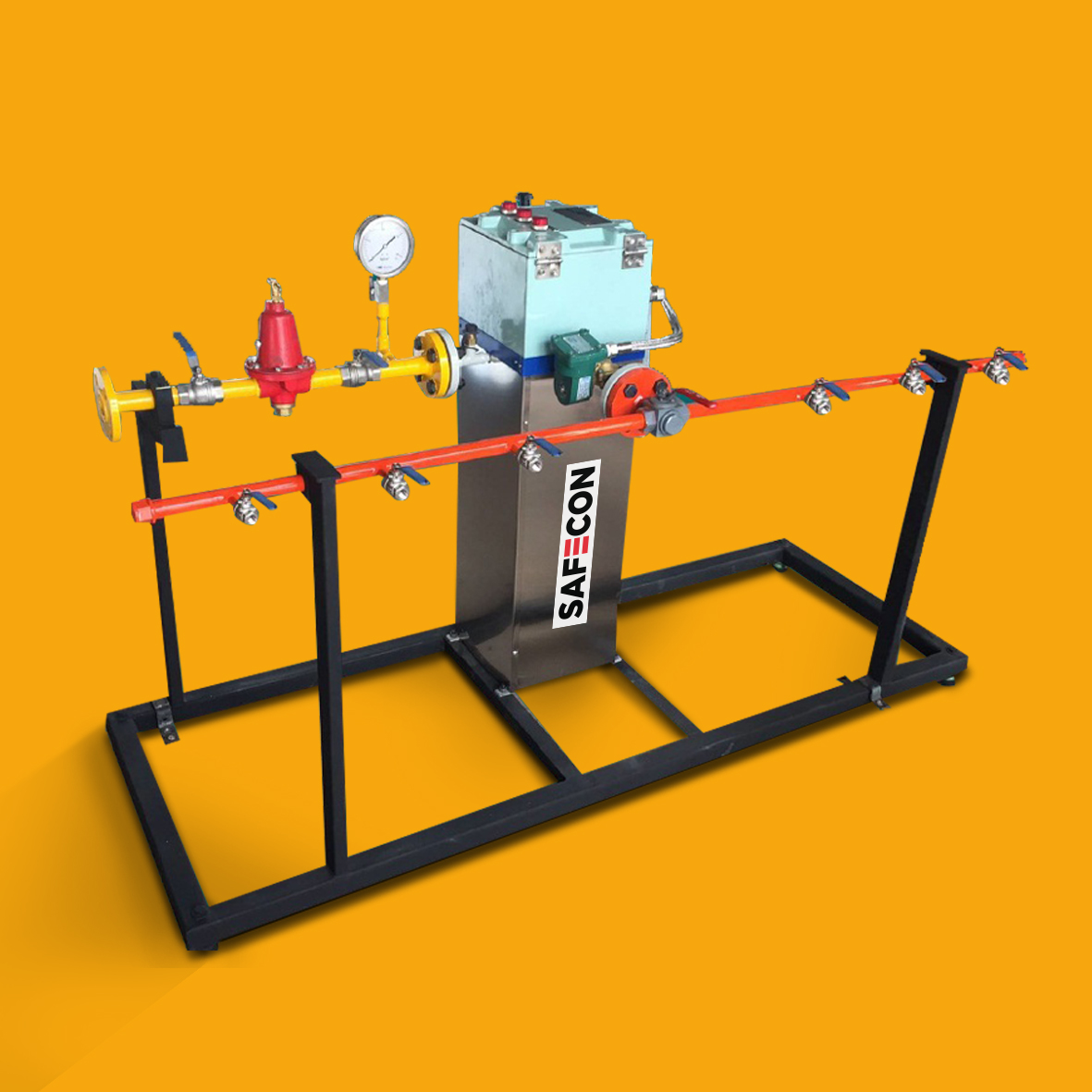

'SMART SKID' is Ready to use LOT system with vapouriser ,cylinder manifold,Pressure regulation station and other safety devices mounted on a skid with plug and use concept. Usage of advanced waterless (Dry type ) vapouriser with quality components/piping and instrumentation makes it most compact,easy to install and maintenance free.The whole system with piping and instrumentation is factory tested to ensure safety and performance
| Model | SKD01 |
|---|---|
| Vapouriser | Dry Type TXD |
| Vapour Out put | 15,25,40Kg/hr and multiples |
| Cylinder type | LOT 19/33/48Kg |
| No. Cylinders | As required |
| Operating pressure | 7kg/cm2 |
| Skid outlet | ASA 300 Flanged |
| Outlet pressure | 1.5Kg/cm2 Max. |
| Liquid trap | Provided with runover priventer |
| Control Panel protection | Flame proof /wether proof |
| Liquid flow control | Solenoid |
| Safety relief valve | Pop Up Type |
| Power Input | 220/415V 50HZ |
| Mounting | Floor mounting |
Features& Advantages
- Ready to use Liquid off take system of Plug&use concept
- Waterless vapouriser-compact,zero corrossion,maintenance free
- No hazles of water filling and water level maintenance in vapouriser
- Additional high temperature cut off for increased safety
- Inbuilt LOT manifold,vapouriser,PR station and other safety devices
- Meets requirements of IS6044,OISD162 and Gas cylinder rules
- Total explosion proof electrical system
- High pressure cut off - optional
- Occupies minimum floor space and easy to install
- Variable pressure output to suit burner requirement
- Quality components like regulators/filters /valves and gauges
- Factory pressure tested piping and components
- Avoids total site fabrication / erection and saves time & labour
